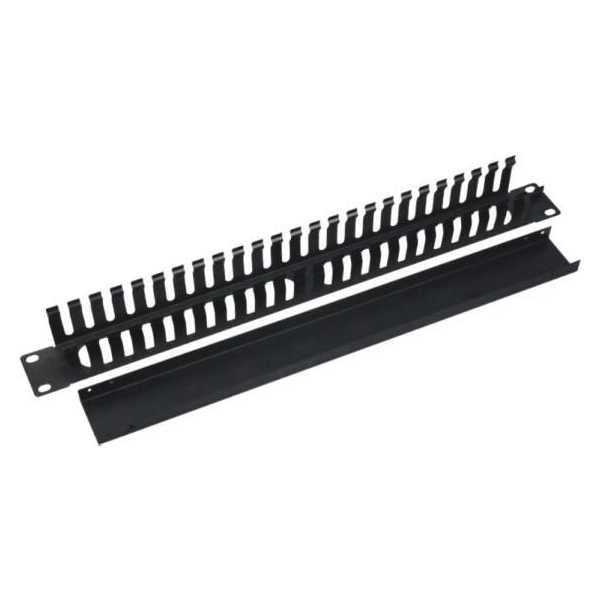

How to handle low-voltage cables entering cable trays

Proper planning, correct tray selection, careful cable handling, and adherence to NEC standards are key to safe and efficient low-voltage cable installation in trays.Planning and PreparationBefore installation, map the cable tray route considering clearance, load, and separation from high-power lines to prevent electromagnetic interference (EMI) and overheating . Determine the voltage and current requirements to select appropriate cable types and sizes, and ensure compliance with local codes and standards such as IEC 60364 and NEC Article 392 . Prepare all tools, including wire strippers, cutters, insulation testers, and continuity testers, and verify they are rated for the voltage level .Tray Selection and SizingChoose the right type of tray—ladder, perforated, or solid-bottom—based on airflow, load, and cable type . Ladder trays are preferred for low-voltage cables due to ventilation and easy cable entry. Calculate tray width and depth according to the number of cables, their diameter, and spacing requirements to avoid overfilling, which can cause overheating . Maintain fill limits: typically 50% for control or low-voltage cables .Installation PracticesSupport and Mounting: Use proper brackets, trapeze hangers, or cantilever supports, spaced according to manufacturer specifications and load requirements, usually 1.5–3 meters apart . Ensure trays are level and aligned.Cable Handling: Avoid excessive bending and mechanical stress. Follow manufacturer bend radius limits to prevent insulation damage . Lay cables in an organized manner and secure them at regular intervals.Separation: Keep low-voltage cables separate from high-power lines to reduce EMI and maintain signal integrity .Identification: Label cables clearly for maintenance and troubleshooting, using markers at accessible points .Safety and ComplianceGrounding: Metallic trays can serve as equipment grounding conductors if compliant with NEC requirements .Clearances: Maintain at least 12 inches of vertical clearance above trays for safe access and maintenance .Environmental Considerations: Use cables rated for the environment, such as moisture, heat, or chemical exposure. Indoor, tunnel, or underground-rated cables may be required .Personal Safety: Wear insulated gloves, goggles, and steel-toed boots to protect against electrical hazards and mechanical injury .Maintenance and LongevityProper installation ensures easy maintenance, reduced risk of faults, and longer cable life. Avoid overfilling, sharp edges, and improper storage, and handle cables gently during installation . Regular inspection of tray supports, cable integrity, and grounding connections is recommended to maintain system reliability. By following these steps, low-voltage cable installations in trays will be safe, code-compliant, and durable, minimizing risks of overheating, mechanical damage, and signal interference.
