Principles of Fiber Optic Sensor Chips

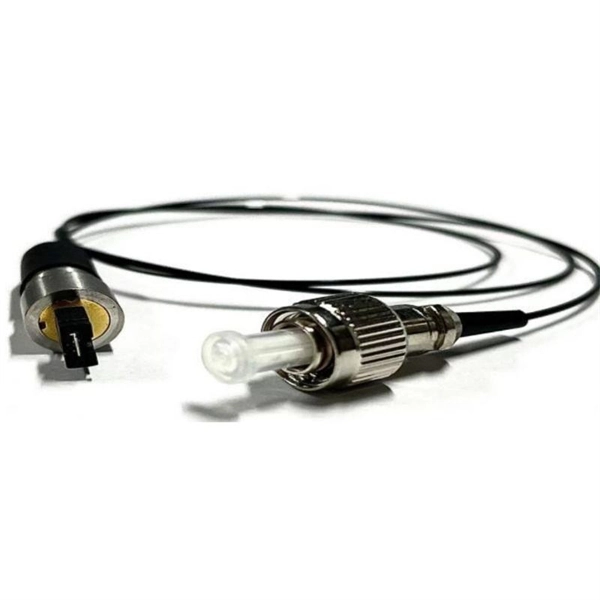

Chip fiber optic sensors detect physical quantities by modulating light within an optical fiber and converting these changes into measurable electronic signals.Core ComponentsA typical chip fiber optic sensor system consists of:Light Source: Often a laser or superluminescent diode that injects light into the optical fiber.Optical Fiber: Acts as a waveguide, carrying light to and from the sensing region.Sensing Element (Transducer): Modulates light properties such as intensity, phase, wavelength, or polarization in response to the physical quantity being measured.Detector: Converts the modulated light back into an electrical signal for analysis .Working MechanismLight Propagation: Light from the source travels through the optical fiber.Interaction with Measurand: The sensing element, which can be integrated on a chip, interacts with the physical parameter (e.g., pressure, temperature, strain).Modulation of Light: The measurand causes changes in the optical properties of the fiber or the chip-integrated sensing element. For intrinsic sensors, the fiber itself is affected; for extrinsic sensors, the modulation occurs outside the fiber .Signal Detection: The detector measures changes in light intensity, phase, wavelength, or polarization, which are then processed to quantify the physical parameter .Types of Fiber Optic SensorsIntrinsic Sensors: The fiber itself acts as the sensing element. Environmental changes directly modulate the light traveling through the fiber. These sensors are suitable for distributed sensing over long distances .Extrinsic Sensors: The fiber transmits light to an external transducer, which modulates the light. The fiber primarily serves as a conduit for the optical signal .Hybrid Sensors: Combine intrinsic and extrinsic features, allowing light to interact with both the fiber and external sensing elements .Chip Integration AdvantagesIntegrating fiber optic sensors onto a chip allows:Miniaturization: Compact design suitable for limited spaces.Enhanced Sensitivity: Precise control of light paths and interaction with the sensing element.Multiplexing: Multiple sensors can be integrated on a single chip, enabling simultaneous measurement of various parameters.Robustness: Reduced susceptibility to electromagnetic interference and improved performance in harsh environments .ApplicationsChip fiber optic sensors are widely used in:Structural health monitoringIndustrial process controlBiomedical sensingHigh-voltage or flammable environments where electrical sensors are unsafe . In summary, chip fiber optic sensors operate by detecting changes in light properties caused by environmental or physical stimuli, with the optical fiber and integrated chip components enabling precise, compact, and robust sensing solutions.
