The capacity of the optical cable junction box refers to

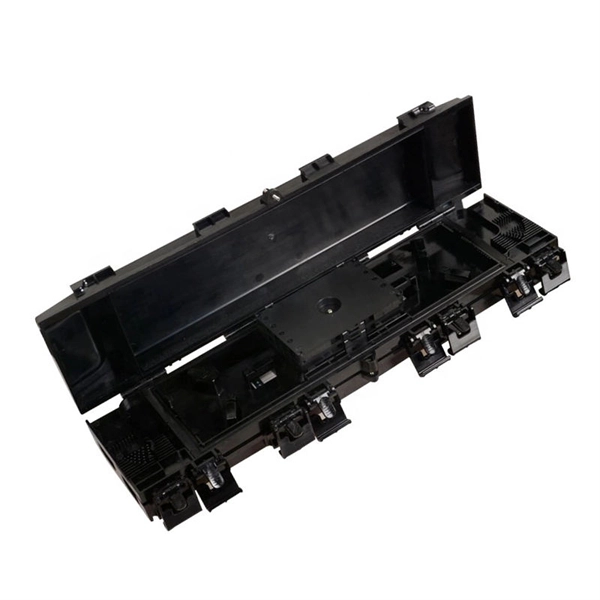

The capacity of an optical cable junction box is determined by the number of fiber splices or terminations it can accommodate, the type of splice trays, and the box's design for future expansion.Key Factors in Determining Capacity1. Fiber Count and Splice Trays The primary determinant of a junction box's capacity is the number of fibers it can handle. Each splice tray typically accommodates a set number of splices, often ranging from 12 to 24 fibers per tray. For example, the EWMJ optical joint box can hold 8 splice trays with 24 splices each, totaling 192 fiber splices . When planning, consider both current fiber requirements and potential future growth, reserving 20–30% extra capacity to avoid early replacement . 2. Cable Type and Entry Points The type of optical cables (e.g., OPGW, loose tube, or plastic-sheathed) and the number of cable entries influence capacity. Junction boxes are designed to accommodate specific cable diameters and types, and multiple entry points allow for easier routing and expansion . Ensure the box supports the cables used in your network. 3. Box Configuration and Modularity Modular designs with removable or expandable trays allow for flexible fiber management and future upgrades. Wall-mounted boxes are suitable for indoor applications, while rack-mounted or tower-mounted boxes are used in data centers or outdoor installations . Modular trays also simplify maintenance and reduce signal loss. 4. Environmental Protection and Material The material and IP rating of the box affect its suitability for indoor or outdoor use. Outdoor boxes require weatherproof materials such as UV-resistant plastics or aluminum and high IP ratings to protect fibers from dust and water ingress . Indoor boxes can use lighter plastic materials. 5. Slack Management and Bend Radius Proper fiber management inside the box, including slack storage and bend-radius protection, ensures that fibers are not damaged and optical performance is maintained. Boxes with clearly labeled ports and organized routing paths improve capacity utilization and maintenance efficiency .Practical Steps to Determine CapacityCount the fibers you need to terminate or splice.Select splice trays based on the number of fibers per tray.Check the box's maximum tray capacity and total fiber splices.Consider future expansion, adding extra trays or reserving ports.Verify cable compatibility and environmental protection requirements. By evaluating these factors, you can select a junction box that meets current network demands while allowing for future growth, ensuring reliable fiber management and minimal signal loss.
