Combiner Box and Photovoltaic Module

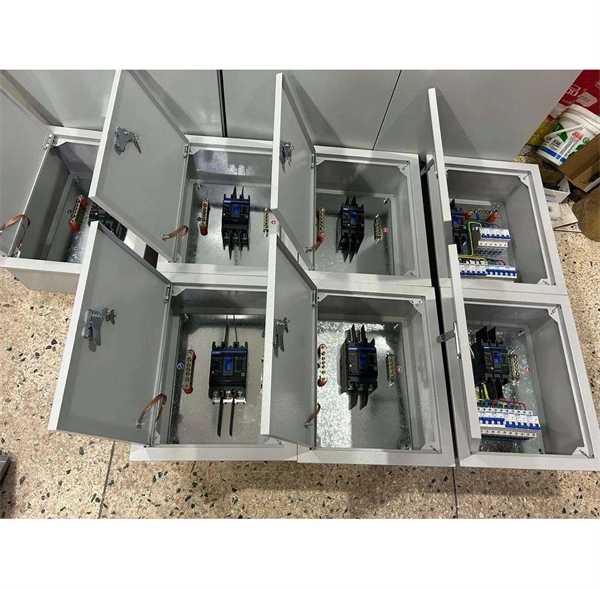

A combiner box consolidates the DC outputs from multiple photovoltaic (PV) modules into a single output for the inverter, enhancing safety, efficiency, and system monitoring.Role of a Combiner Box in PV SystemsA combiner box is a critical component in solar photovoltaic systems, positioned between the PV modules and the inverter. Its primary function is to combine the DC outputs from multiple strings of solar modules into a single output conductor that connects to the inverter, simplifying wiring and reducing installation complexity . Each string of PV modules is wired in series, and the combiner box collects these strings, allowing for easier management and maintenance.Key Functions and FeaturesOvercurrent Protection: Combiner boxes include fuses or circuit breakers for each string to prevent overcurrent situations that could damage PV modules or other system components .Fault Isolation: If one string fails, only that branch is isolated, preventing a system-wide shutdown .Monitoring Capabilities: Advanced combiner boxes can monitor individual string performance, helping detect shading, malfunctions, or inefficiencies .Safety Enhancements: Many combiner boxes incorporate disconnect switches and surge protection devices, allowing safe maintenance and protection against lightning or reverse currents .Wiring Simplification: By aggregating multiple strings, combiner boxes reduce the number of wires running to the inverter, lowering labor and material costs .Types of Combiner BoxesStandard DC Combiner Box: Combines DC outputs from multiple strings with basic overcurrent protection.String-Level Monitoring Combiner Box: Adds monitoring for each string to optimize performance.Smart Combiner Box: Integrates monitoring and communication with energy management systems for enhanced efficiency.AC Combiner Box: Used with microinverters or AC modules to consolidate AC outputs.Bi-Polar Combiner Box: Designed for systems with both positive and negative grounding .Integration with Photovoltaic ModulesEach PV module generates DC electricity, and multiple modules are connected in series to form a string. The combiner box collects these strings, ensuring efficient energy distribution and system reliability. It acts as the “nerve center” for the DC side of the system, providing protection, monitoring, and simplified connectivity to the inverter .Practical BenefitsReduces balance-of-system costs by minimizing wiring and labor.Enhances system reliability through protective features.Facilitates maintenance by allowing individual strings to be serviced without shutting down the entire array.Supports residential and commercial installations, adaptable to systems with a few strings or thousands . In summary, a combiner box is essential for managing multiple PV modules, ensuring safety, simplifying wiring, enabling monitoring, and improving overall system efficiency in solar power installations.
