Introduction to Wiring Outdoor Distribution Boxes

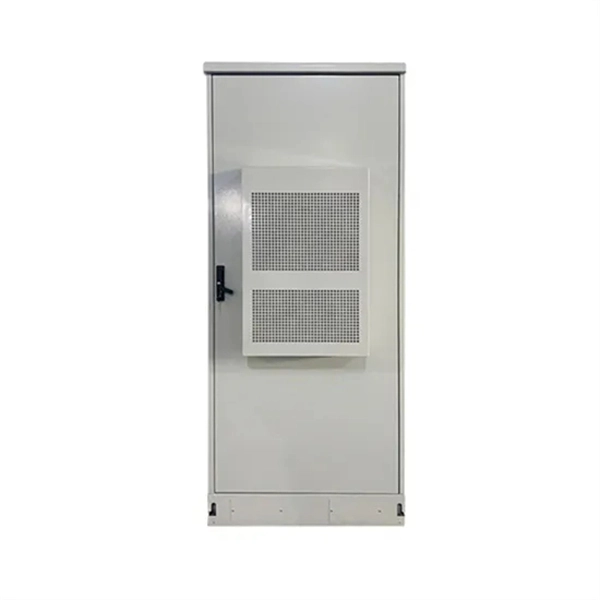

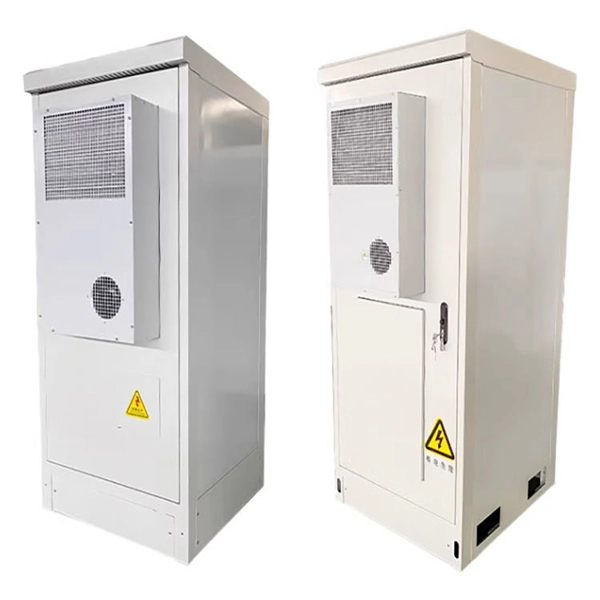

Outdoor distribution boxes require weatherproof enclosures, proper grounding, secure wire connections, and sealed conduit entries to ensure safe and reliable power distribution.Enclosure SelectionChoose a weatherproof enclosure rated for outdoor use. In North America, a NEMA 3R rating is the minimum for general outdoor exposure, protecting against rain, sleet, and ice formation, while NEMA 4X is preferred for harsh environments like coastal areas due to added dust, water, and corrosion resistance . Materials can include UV-resistant polycarbonate or ABS plastic for lightweight applications, or die-cast aluminum and stainless steel for superior durability and electromagnetic shielding . For underground installations, use NEMA 6P or IP68-rated boxes to resist submersion and soil corrosion .Wiring and Conductor ConnectionsInside the box, all conductor splices must be made using listed wire connectors such as wire nuts or terminal blocks, ensuring mechanical and electrical security . Maintain a minimum of 6 inches of free conductor length for safe splicing and future maintenance. Use appropriate wire gauge for the load and ensure neat cable management to prevent stress on connections .Grounding and BondingAll metal enclosures must be properly grounded. Connect the equipment grounding conductors to the box itself to prevent electrical shock and ensure compliance with the NEC . For plastic enclosures, grounding is not required for the box itself, but all circuits must still be grounded.Conduit and SealingUse rigid or flexible conduit to protect feeder wires from the main panel to the outdoor box. Employ liquid-tight fittings, cord grips, or compression connectors with O-rings or gaskets to maintain a watertight seal at entry points . For non-metallic sheathed cable, use wet-location-rated cable connectors or glands. Seal any unused knockouts with listed plugs or sealing compound to preserve the enclosure's ingress protection .Installation Best PracticesMount the box in a dry, accessible location at a convenient height (typically ~1.5 meters) .Ensure the box is level and securely fastened using corrosion-resistant screws or anchors suitable for the wall material .Label all circuits clearly and consider modular designs for future upgrades .Perform visual inspections and multimeter tests before powering on .Schedule regular maintenance to check for moisture ingress, corrosion, or loose connections .Safety ConsiderationsAlways turn off the main power before starting work and use insulated gloves and safety goggles . Consult local electrical codes and obtain permits if required, as outdoor distribution boxes are subject to strict safety regulations . For complex installations, consider hiring a licensed electrician to ensure compliance and safety. By following these guidelines, your outdoor distribution box will provide safe, reliable, and long-lasting power distribution while minimizing the risk of electrical hazards.
