Where should the fiber optic patch panel be placed

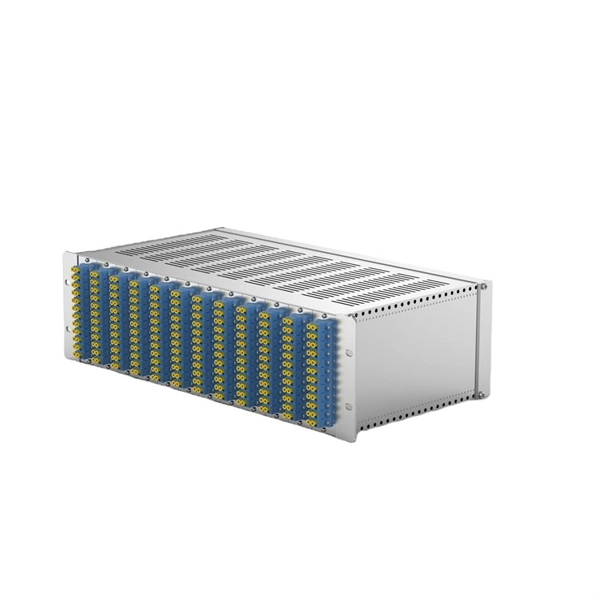

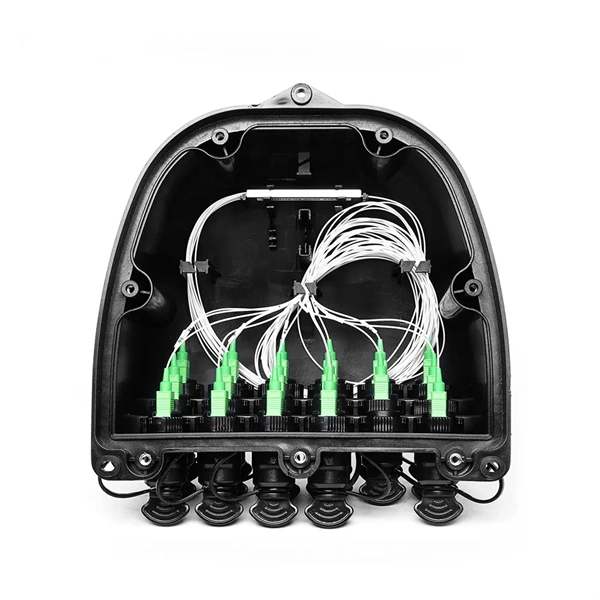

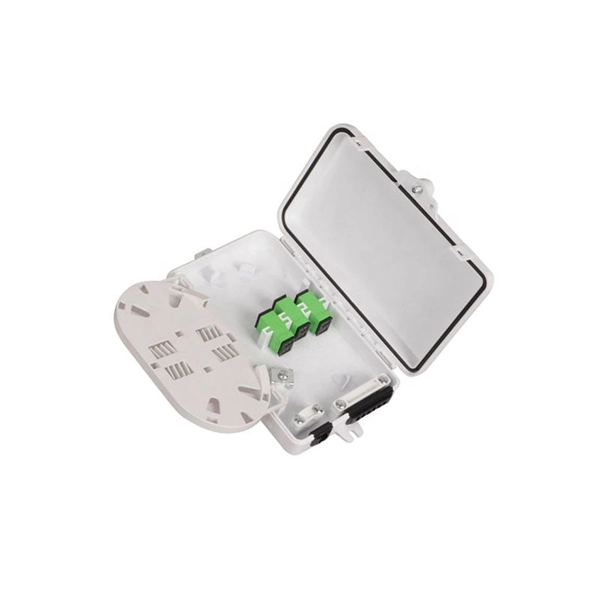

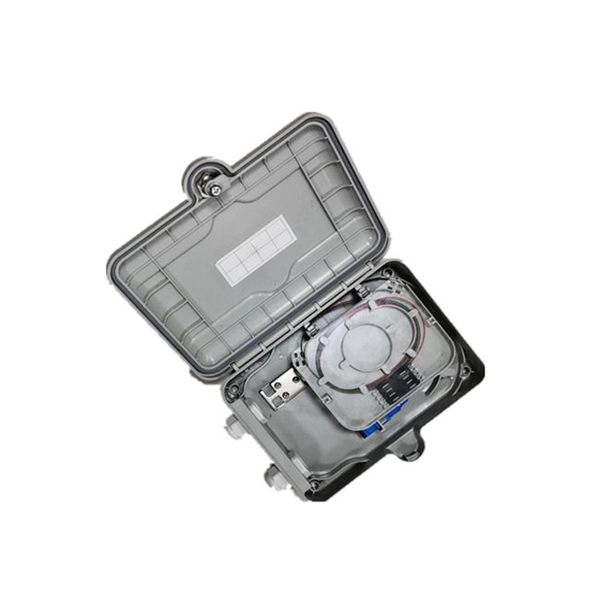

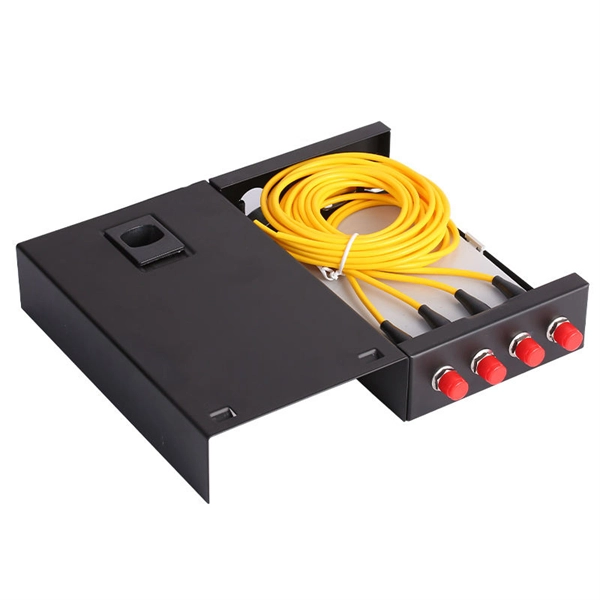

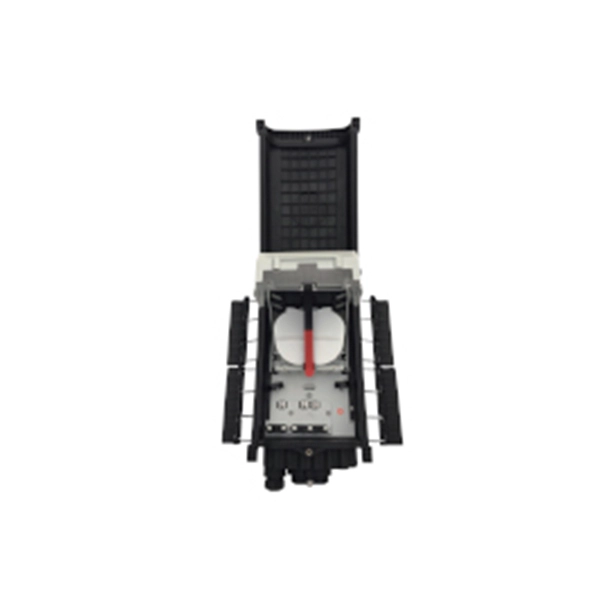

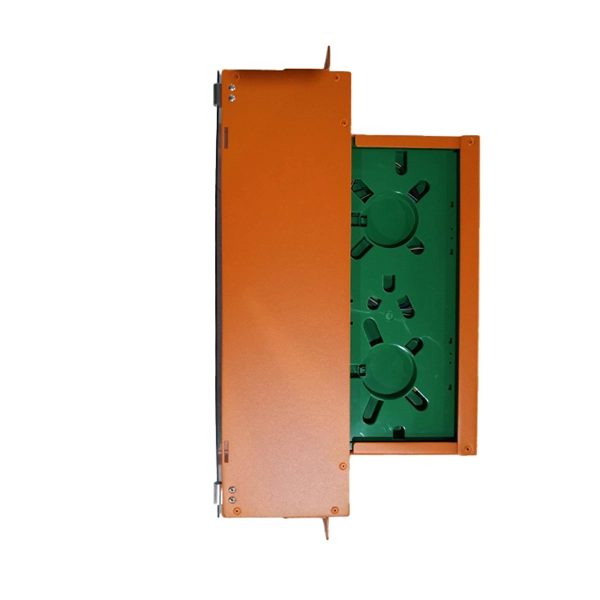

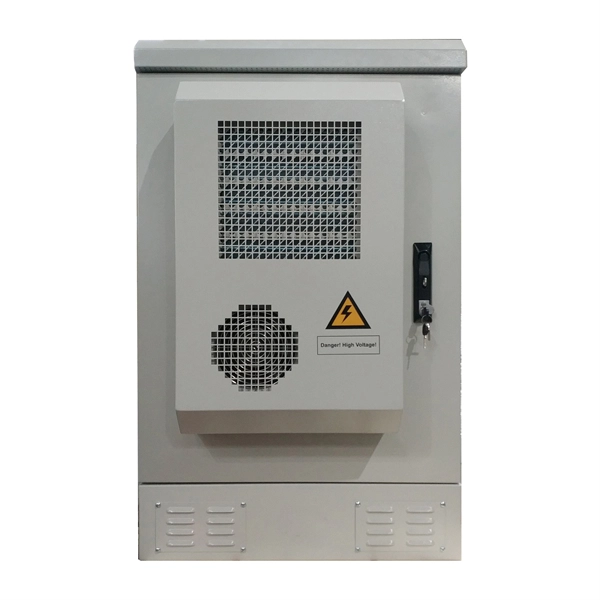

Fiber optic patch panels should be placed in accessible, secure, and environmentally suitable locations, typically in racks, on walls, or in outdoor enclosures depending on the network setup.Key Placement ConsiderationsRack-Mounted Panels: These are ideal for data centers or server rooms. Install the patch panel in a standard 19-inch or 23-inch equipment rack, following the EIA-310 standard. Ensure sufficient vertical space (measured in Rack Units, RU) for the panel and future expansion. Rack placement allows centralized cable management, easy access for maintenance, and improved airflow around active equipment . Wall-Mounted Panels: Suitable for smaller offices, FTTH (Fiber to the Home), or FTTB (Fiber to the Building) installations. Mount the panel on a sturdy surface such as a telco backboard, concrete wall, or metallic panel. Wall-mounted panels save space and provide organized fiber terminations in compact areas while protecting fibers from dust and mechanical damage . Outdoor Panels: Designed for direct outdoor installation, these panels protect fibers from environmental factors like rain, snow, dust, and wind. Place them in secure, weather-protected locations with proper sealing and grounding to maintain signal integrity .Additional Placement GuidelinesAccessibility: Ensure technicians can easily reach the panel for maintenance, troubleshooting, or future expansion. Avoid placing panels in cramped or obstructed areas .Cable Management: Plan the location to allow smooth cable routing with minimal bends. Maintain the minimum bend radius for fiber types (e.g., OM4, OS2) to prevent signal loss .Environmental Conditions: Avoid areas with excessive heat, moisture, or vibration. Indoor panels should be in climate-controlled rooms, while outdoor panels require weatherproof enclosures .Future Proofing: Consider potential network growth. Position the panel to accommodate additional fibers, modular cassettes, or higher-density connections without major rework .Safety and Organization: Proper placement reduces the risk of accidental fiber damage, ensures organized terminations, and supports efficient troubleshooting . By carefully selecting the location based on these factors, a fiber optic patch panel can provide a reliable, scalable, and maintainable network infrastructure.
