How to connect the fiber optic cable to the terminal box

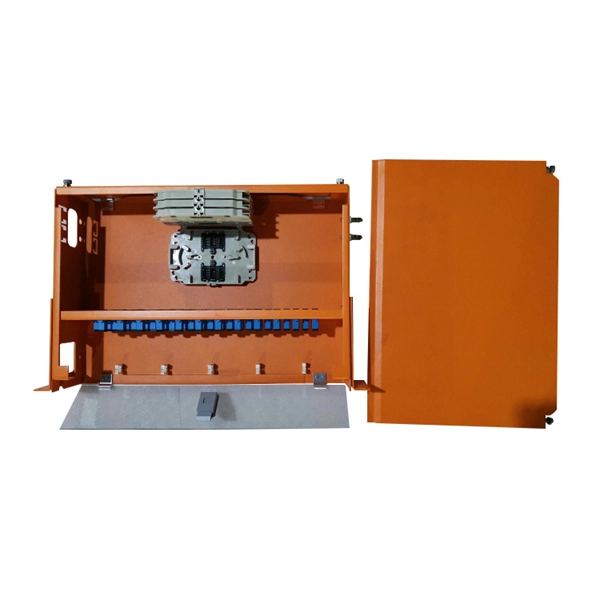

Connecting a fiber optic cable to a terminal box involves careful preparation, splicing or connector insertion, and testing to ensure a reliable optical connection.Tools and Materials NeededFiber optic cable and pigtails compatible with the terminal box Fiber optic cutting pliers and strippers Fiber adapters (SC/APC or as specified), Cleaning agent (alcohol or specialized fiber cleaner), Labeling tape for cable identification Gloves to prevent contamination Fiber optic power meter or tester for verification Step-by-Step Connection Process1. Prepare the Fiber CableMeasure and cut the fiber optic cable to the required length using fiber cutting pliers .Strip the outer jacket carefully to expose the fiber cores without damaging them .Clean the exposed fiber ends with a cleaning agent to remove dust or oils . 2. Mount the Terminal BoxSecurely mount the fiber optic terminal box at the desired location, ensuring it is stable and accessible for future maintenance .Plan the internal layout for fiber routing, slack management, and port allocation . 3. Connect the Fiber to the Terminal BoxOpen the connector cover of the terminal box .Insert the prepared fiber into the corresponding port or splice tray inside the terminal box .If using pigtails, splice the fiber cores to the pigtails using fusion splicing or mechanical splicing .Plug the pigtail connectors into the fiber adapters on the terminal box, ensuring a secure fit . 4. Label and OrganizeLabel each fiber connection with a unique identifier for easy troubleshooting and maintenance .Route the fibers carefully to avoid sharp bends or pinching, which can cause signal loss . 5. Test the ConnectionPower on the terminal box and connected network devices .Use a fiber optic tester or power meter to verify signal quality, bandwidth, and proper light transmission .Check for weak or lost signals and adjust connections if necessary . 6. Finalize InstallationClose the terminal box securely.Ensure all fibers are properly managed and protected from physical stress or contamination . Following these steps ensures a reliable, high-performance fiber optic connection from the cable to the terminal box, minimizing signal loss and maintaining network integrity .
