Fiber Optic Cable Joint Compensation

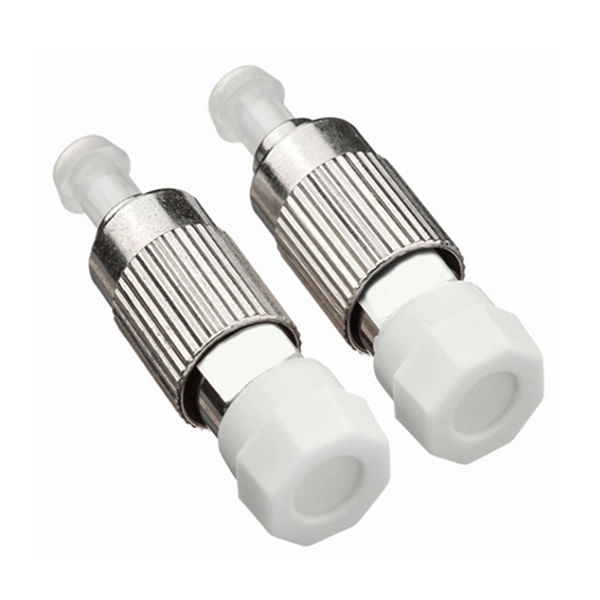

Fiber optic cable joint compensation involves minimizing signal loss and dispersion at fiber joints using splicing, connectors, and amplification or dispersion management techniques.Signal Loss at Fiber JointsEvery fiber joint introduces insertion loss due to misalignment, end-face imperfections, or differences in core diameter and numerical aperture between fibers. Proper splicing or connectorization is essential to reduce these losses. Fusion splicing, where fiber ends are precisely aligned and fused, typically provides the lowest loss, while mechanical connectors are convenient for frequent disconnections but may have slightly higher and less stable losses . Multimode fibers are easier to join due to larger core diameters, whereas single-mode fibers require precise alignment to avoid significant coupling loss .Dispersion CompensationFiber joints and long fiber links can suffer from chromatic dispersion and polarization mode dispersion, which broaden pulses and degrade signal quality. Compensation techniques include:Dispersion Compensating Fiber (DCF): A fiber with negative dispersion is inserted to counteract the positive dispersion of standard fibers, effectively reducing pulse broadening .Fiber Bragg Gratings (FBG): Reflective gratings in the fiber core selectively delay wavelengths to compensate dispersion, suitable for long-haul systems .Optical Phase Conjugation: Reverses the phase of the optical signal to cancel accumulated dispersion effects .Electronic Dispersion Compensation (EDC): Uses adaptive electronic filters at the receiver to correct signal distortion caused by dispersion .Attenuation CompensationSignal attenuation at joints and along the fiber can be mitigated using optical amplifiers:Lumped Amplifiers: Placed at discrete points along the fiber, typically every 80–100 km, to boost signal power.Distributed Amplifiers: Integrated along the fiber, such as Raman amplifiers, providing continuous gain and reducing the need for frequent repeaters .Best Practices for JointingEnd-face preparation: Cleaving fibers perpendicularly or at a controlled angle ensures proper alignment and minimal Fresnel reflections .Cleanliness: Dust or contamination at the joint can significantly increase loss.Testing and maintenance: Regular insertion loss and return loss measurements help identify and correct joint issues .SummaryEffective fiber optic joint compensation combines precise splicing or connectorization, dispersion management, and attenuation compensation. Using DCF, FBGs, optical amplifiers, and proper jointing techniques ensures high-quality signal transmission over long distances, maintaining system performance in both single-mode and multimode fiber networks .
